rtc.c File Reference

#include <avr/io.h>
#include <avr/pgmspace.h>
#include <stdio.h>
#include <inttypes.h>
#include "util.h"
#include "rtc.h"

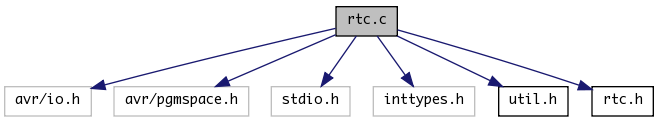

Include dependency graph for rtc.c:

Defines
#define	DDRRTCSEL   DDRB
#define	PORTRTCSEL   PORTB
#define	DDRSPI   DDRB
#define	PORTSPI   PORTB
#define	RTCSEL   6
#define	MISO   4
#define	MOSI   3
#define	SCK   5
Functions
void	rtc_init ()
void	rtc_send (uint8_t b)
void	rtc_over ()
uint8_t	rtc_rw (uint8_t addr, int8_t value)
uint16_t	rtc_gettime (uint8_t ss)
void	rtc_dump ()

---

Define Documentation

#define DDRRTCSEL   DDRB

#define DDRSPI   DDRB

#define MISO   4

#define MOSI   3

#define PORTRTCSEL   PORTB

#define PORTSPI   PORTB

#define RTCSEL   6

#define SCK   5

---

Function Documentation

void rtc_dump

(

)

                {
    uint8_t i;

    rtc_send(0);
    for (i = 0; i < 0x1a; i++) {
        rtc_send(0);
        printf_P(PSTR("%02x:%02x   "), i, SPDR);
    }
    rtc_over();
}

Here is the call graph for this function:

uint16_t rtc_gettime

(

uint8_t

ss

)

                                 {
    uint16_t time = 0;

    // address 0 for seconds, minutes; minutes, hours otherwise
    rtc_send(ss ? 0 : 1);

    // data 1
    rtc_send(0);
    time = SPDR;

    // data 2
    rtc_send(0);
    while (!(SPSR & _BV(SPIF)));
    time |= SPDR<<8;

    rtc_over();

    return time;
}

Here is the call graph for this function:

void rtc_init

(

)

                {
    //DDRD |= _BV(4);     // RTCSEL#
    DDRRTCSEL |= _BV(RTCSEL);

    DDRSPI |= BV2(MOSI,SCK);
    DDRB &= ~_BV(MISO);

    PORTRTCSEL |= _BV(RTCSEL);

    SPCR = BV4(SPE, MSTR, CPHA, SPR1);
}

void rtc_over

(

)

                {
    PORTRTCSEL |= _BV(RTCSEL);
}

uint8_t rtc_rw	(	uint8_t	addr,
		int8_t	value
	)

                                           {
    rtc_send(addr | (value == -1 ? 0 : 0200));
    rtc_send(value);
    rtc_over();
    return SPDR;
}

Here is the call graph for this function:

void rtc_send

(

uint8_t

b

)

                         {
    PORTRTCSEL &= ~_BV(RTCSEL);
    SPDR = b;
    spi_wait();
}
